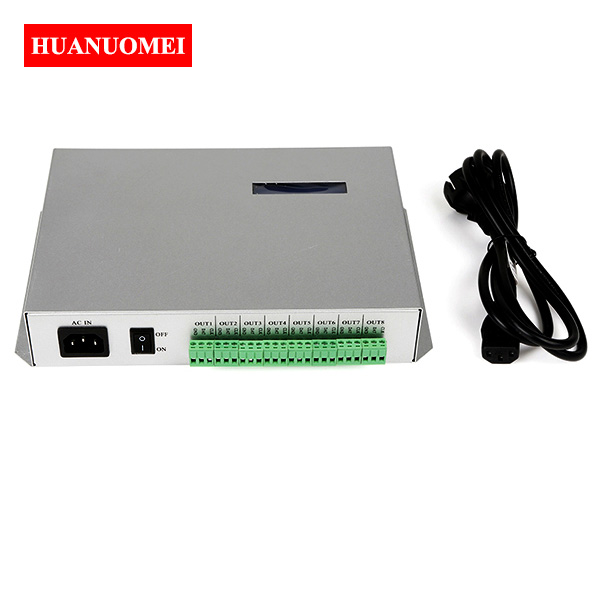

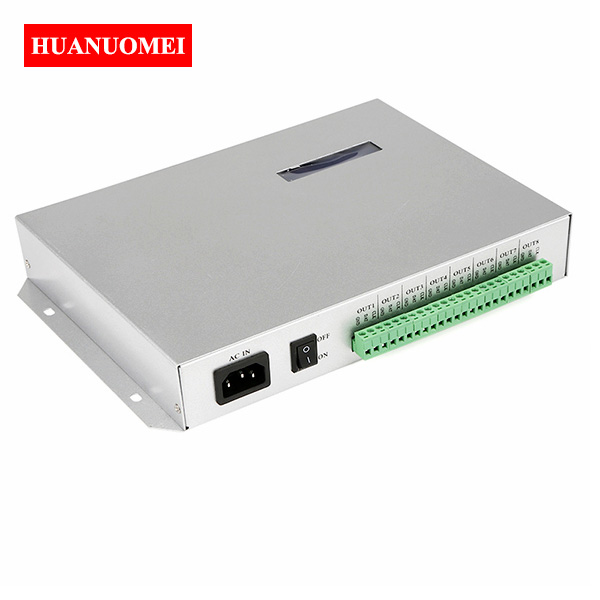

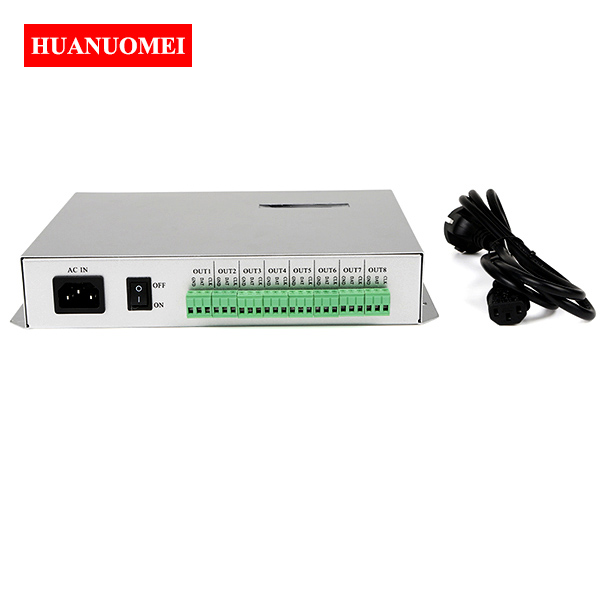

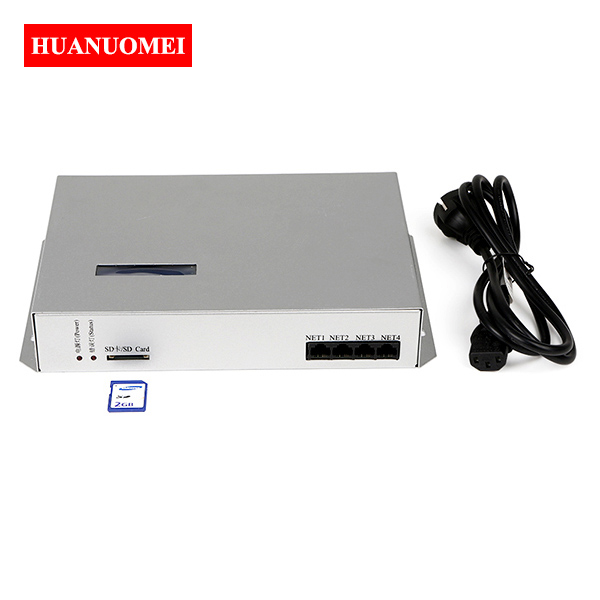

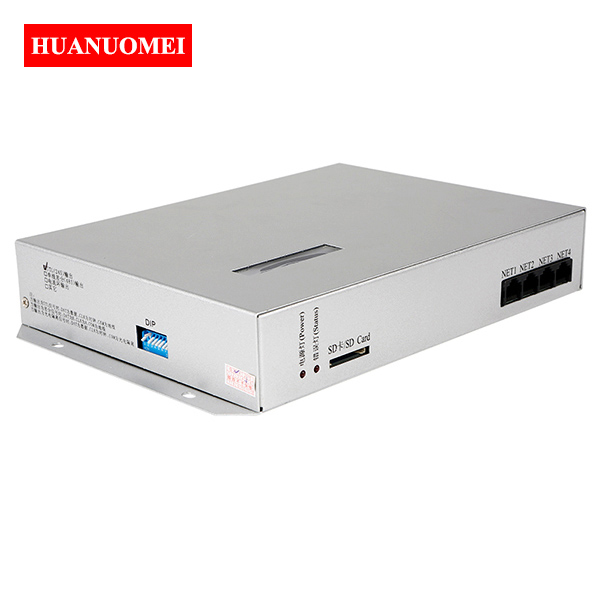

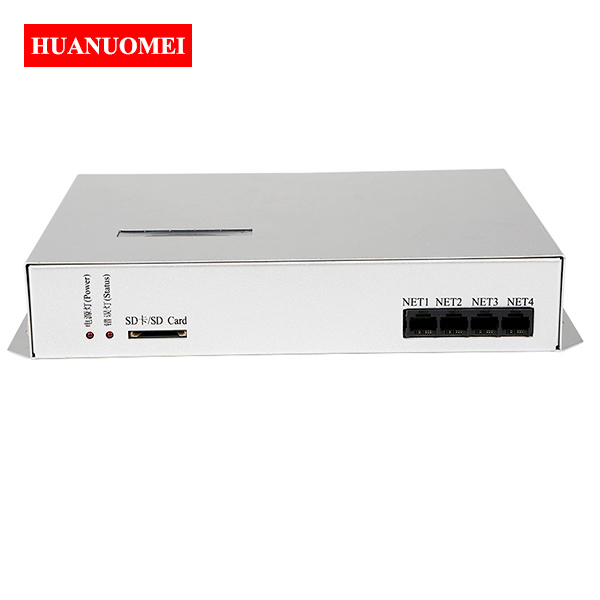

T-300K Online LED Controller SD Card Digital Pixel RGB Full Color Programmable Dimmer WS2811 WS2812B 8Ports*1024Pixels AC90-220V

1. T-300k System features

1. 32~256 grade Gray level,Support software Gamma correction.
2. Support the rules and special-shaped handle.
3. 8 ports output,one port can support 512-1024 lamp pixels.
4. On-line (also can SD Card) control, offline control Can be multiple controllers used in combination, the contents of the line control program stored in the SD card.
5. Compatible with single line or double line chips.
6. If the controller to the lamps distance can choose photoelectric isolated transmission and as far as several distances of up to 200-300 M

Note:

1. the T-300 K controller offline control, each machine controller must put a SD card.

2. T-300K controller can only be combined with the new version software LedEdit2013 . Using the old software does not support the new version of the controller, the new version of the controller has been printed the Chinese sign.

3. After you put the order, if you need the LedEdit2013 software, please contact to us, then we will send it to you free. And also we can teach you how to use the software if you don't know how to use it.

2. Support Chips:

NOTE:if chip is 256 grade gray level and Single-line IC choose .When programming choice high speed mode and one interface controls 1024 lamps the play speed can reach 30 frames/s. Double-line IC or single-line IC with low speed , one interface controls 512 lamps the play speed can reach 30 frames/s.

4.The meaning of flag

TTL signal(245 signalz):

NOTE:According to TTL signal output, Ground of the controller must be connected to the lamp ground.
